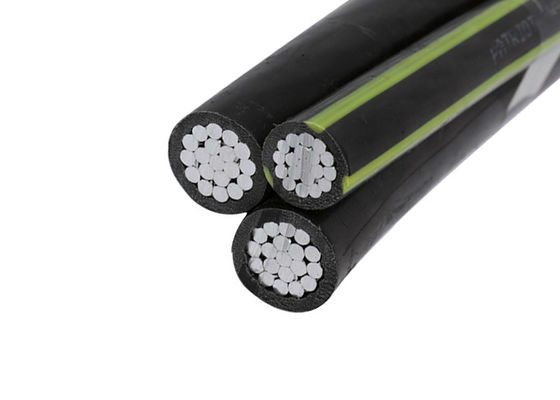

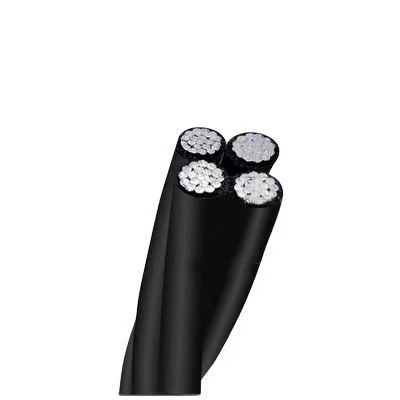

High-Quality 0.6/1kV Triplex/Quadruplex Aerial Bundled Cable for Reliable Power Distribution
Product Introduction
Our 0.6/1kV Aluminum Aerial Bundled Cable (ABC) is engineered for superior performance in overhead service drop applications, supplying power from utility lines to the consumer's point of connection. This cable is constructed with concentric strand or compressed 1350-H19 aluminum phase conductors, insulated with durable cross-linked polyethylene (XLPE) rated for continuous operation at 90°C. The integrated neutral messenger, available in AAC, ACSR, or AAAC (6201 alloy), provides both mechanical support and electrical return. Designed to meet ASTM standards, this Aerial Bundled Cable is the optimal solution for safe and efficient power distribution in residential, commercial, and light industrial settings, including facilities where reliable power is critical.
Features & Benefits
-
Enhanced Safety & Reliability: The fully insulated design of this Aerial Bundled Cable prevents accidental contact, offering maximum personnel safety and protection against faults caused by falling branches, animals, or wind-blown debris, minimizing outages.
-
Superior Durability: Resists abrasion, moisture, sunlight (UV), and extreme temperatures from -30°C to +80°C, ensuring high dependability and a long service life in diverse climates.
-
Simplified & Economical Installation: The bundled design allows for longer spans, requires fewer supports, and enables easier installation in areas congested with obstacles or vegetation. This reduces overall installation time and material costs.
-
Optimal for Sensitive Equipment: By providing a more stable and fault-resistant connection, it helps protect sensitive machinery,
Why Choose Our Aerial Bundled Cable?
We specialize in supplying premium Aerial Bundled Cable that meets the stringent demands of international markets, including the EU, North America, and Southeast Asia (like Vietnam). Our cables are manufactured to exacting ASTM and ICEA S-76-474 standards, guaranteeing performance and safety. We understand the needs of industrial manufacturers who require uninterrupted power for production continuity. Choosing our ABC solution means investing in a system that reduces maintenance, enhances grid reliability, and protects your operational efficiency. Our flexible packaging and reliable delivery (typically within 15 days) support your project timelines seamlessly.
Technical Data Table (Example)
|
Item
|
Phase Conductor Size (mm²)
|
Phase Conductor Stranding
|
Approx. Overall Diameter (mm)
|
Approx. Weight (kg/km)
|
|
1
|
1x10
|
7/1.35
|
6.15
|
44
|
|
2
|
1x16
|
7/1.70
|
7.62
|
68
|
|
3
|
1x25
|
7/2.22
|
8.72
|
96
|
|
4
|
1x35
|
7/2.59
|
10.14
|
134
|
|
5
|
1x50
|
7/3.10
|
11.24
|
180
|
|
6
|
1x70
|
19/2.22
|
12.94
|
242
|
|
7
|
1x95
|
19/2.59
|
14.54
|
318
|
(Table shows a partial list. Full range from 10mm² to 300mm² available.)
Rated Voltage: 0.6/1 kV | Test Voltage: 4 kV | Min. Bending Radius: 18 x Cable Diameter
FAQ
Q: What is the main advantage of an Aerial Bundled Cable over bare overhead wires?
A: The primary advantage is greatly enhanced safety and reliability. The full insulation prevents short circuits, reduces power outages, and protects against accidental contact, making it safer for the public and installers.
Q: Is this cable suitable for industrial areas?
A: Absolutely. Its durability and reliability make it an excellent choice for supplying power to industrial facilities, including factories operating precision equipment , where consistent power quality is essential.
Q: What standards does this cable comply with?
A: Our ABC cable is manufactured according to key ASTM standards (B-230, B-231, B-232, etc.) and meets or exceeds ANSI/ICEA S-76-474, ensuring international acceptance.
Q: What is the delivery time and packaging?
A: Standard delivery is within 15 days after payment. Cables are supplied on sturdy wooden drums (standard size 1100mm x 1100mm x 1100mm) with lengths from 100m to 1000m per reel, customizable per request.
